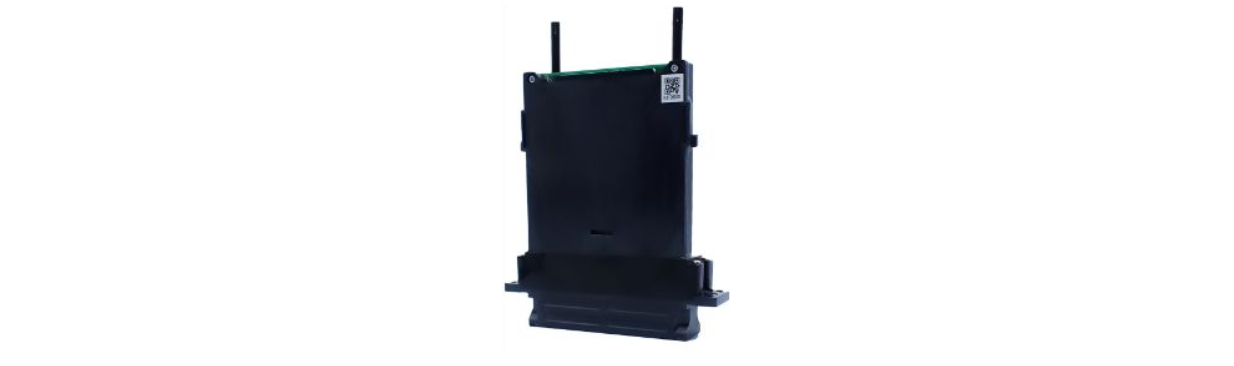

Konica Minolta KM800 printhead
KM800 Series printheads are:
- Thin film piezo with a unique nozzle processing technology that enables satellite-less, high-quality printing even with wide media gaps. Prints on uneven substrates and 3-dimensional objects, as well as jetting horizontally.
- Available with stainless steel ink flow path and nozzle plate, together with high jetting stability and nozzle durability ensures the print head meets the high reliability requirement for most industrial applications.
KM800 Series Specifications
Technology
Independent channel, drop-on-demand MEMS
Number of nozzles
Total number of printable nozzles
800 (200 x 4 rows)
Channel resolutionThe number of ink channels/printable nozzles per linear inch
70.5um pitch (360 dpi; 4 rows x 90 dpi)
Dimensions
Height 109.4 mm (119.0 KM800H-MR) x Width 18.8 mm x Length 99.0 mm
Printing widthMaximum possible print width in a single pass
56.4 mm
Overall row spacingDistance in mm between the first and last row of printing nozzles
7.90 mm
Drop velocityThe mean ink drop velocity as measured under Konica Minolta manufacturing test conditions
10.0 m/sec nominal
Weight
100 g KM800H-MR 145 g
There are different models of the 1024 series for different ink types:
| KM800 series model |
Available ink type |
Heater for UV ink |
Recommended temp. |
| KM800H-MR |
UV |
 |
Under 45 degrees C |
| KM800 |
Water-based |
 |
Ambient |
Each model is available in a choice of 3 sizes:
| Native drop volume |
Grey scale |
Drop size |
Typical frequency |
Max frequency |
Drive voltage |
| Large |
8 levels |
40 pl |
6.8 kHz |
7.6 kHz |
13 +/- 3V |
| Medium |
8 levels |
14 pl |
12.8 kHz |
13.2 kHz |
13 +/- 3V |
| Small |
8 levels |
6 pl |
28 kHz |
30 kHz |
18 +/- 3V |
